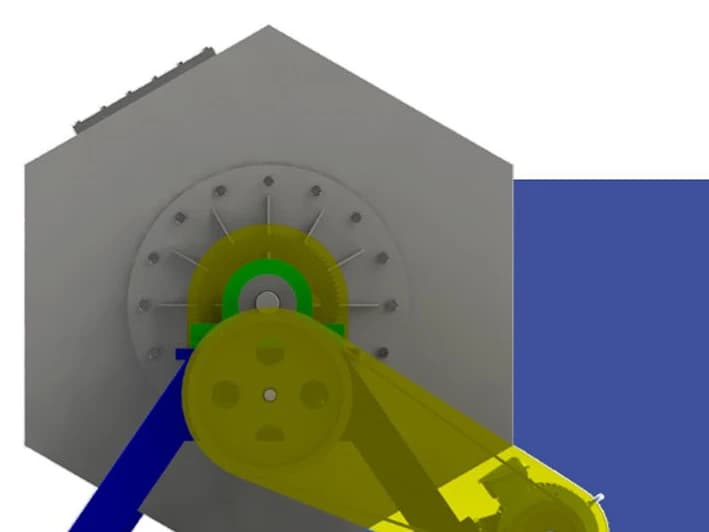

Hexagonal Ball Mill
Our Hexagonal Ball Mills represent the next evolution in grinding technology, offering superior efficiency and performance compared to conventional cylindrical mills. The unique hexagonal chamber design creates enhanced material tumbling patterns, resulting in more efficient grinding action, improved energy transfer, and accelerated size reduction.
Request a quote for the Hexagonal Ball Mill
1 – 20 t/batch
Capacity
35 – 150 kW
Drive Power
65–78% critical
Speed
Technical Specifications
- Capacity Range
- 1 to 20 tons/batch
- Mill Dimensions
- 1.2–4.5 m across flats
- Mill Length
- 2.5–8.0 m
- Drive Power
- 35 kW – 150 kW
- Speed Range
- 65–78% of critical speed
- Liner Options
- Hi-Chrome, manganese steel
- Grinding Media
- Steel or ceramic balls, 20–100 mm diameter
- Discharge System
- Overflow or grate options
Applications
Hard-rock mineral processingCement & clinker grindingLimestone & dolomite processingFertiliser productionDross grindingFine-powder preparation
Gallery
Request a quote for the Hexagonal Ball Mill
